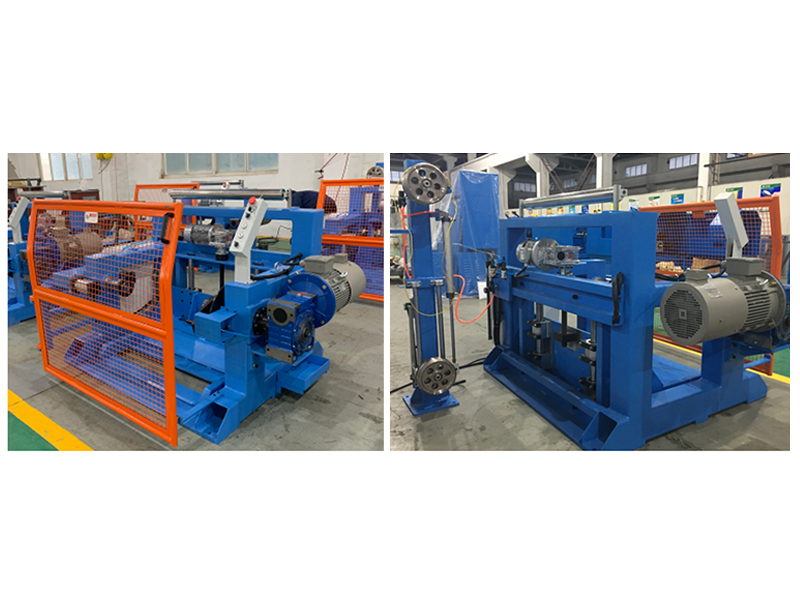

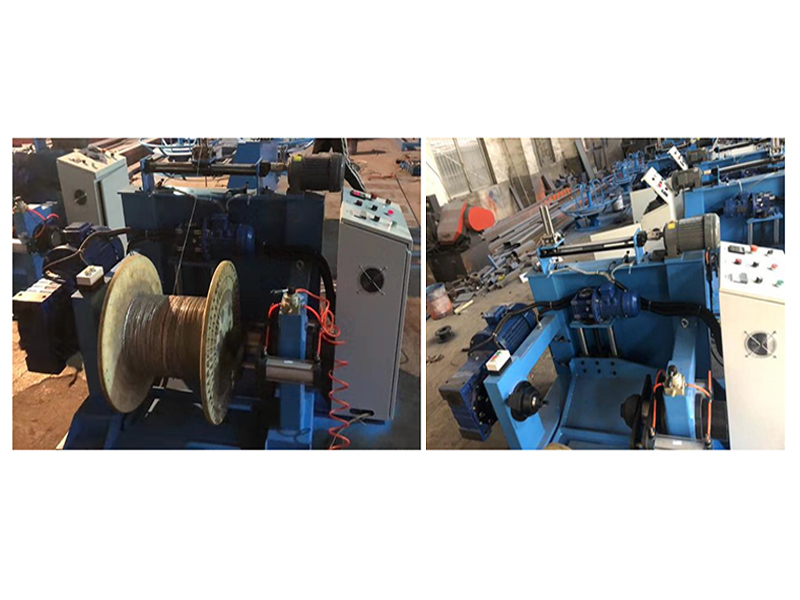

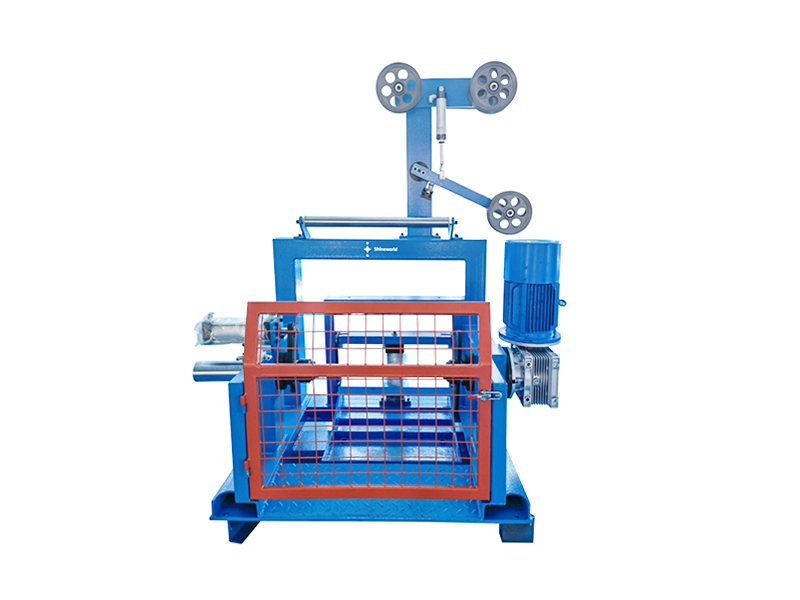

SW 800/630 Rewinding Machine

  • The rewinding line will be mainly used for Galvanized Steel Round Wire and Galvanized Steel Flat Wire. But will be used to rewind conductor as well.

  • Brand accessories, quality assurance. Schneider control elements, Siemens motors, drive systems and PLC control panels.

  • Simple operation, customizable machine operation direction and machine color.


  1. Main technical parameter
Steel round wire size Φ0.80~Φ2.0mm
Flat steel wire 0.8×4.0mm
Pay off bobbin size 630/800mm
Take up bobbin size 500/630mm
Take up motor 5.5KW AC VF motor

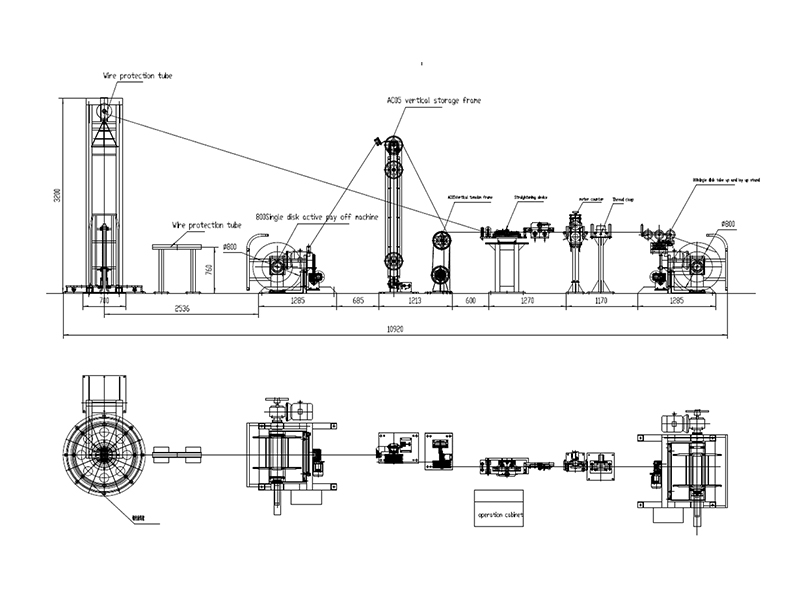

  1. Main components

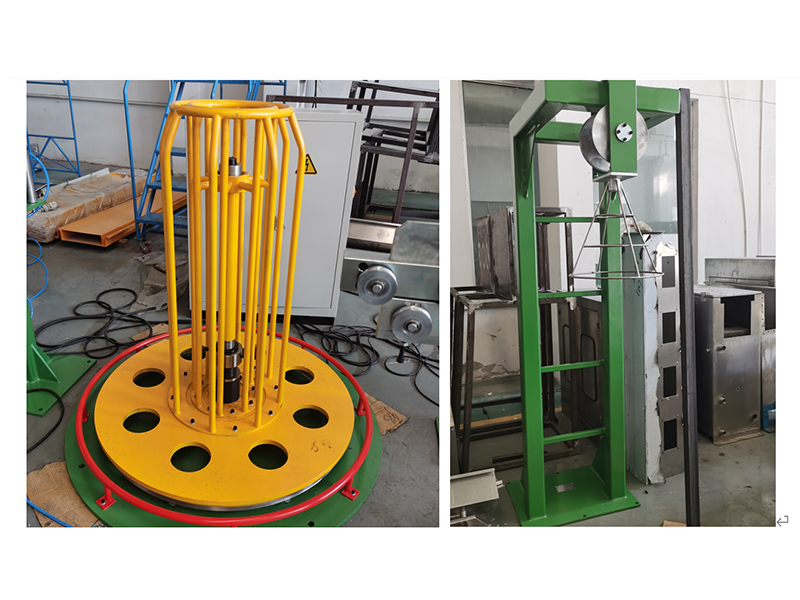

Basket pay off for steel wire coil 1 set
630/800 pay off 1 set
Straightening device 1 set
Meter counter 1 set
500/630 take up 1 set
Electrical control system 1 set
