Meter Counter

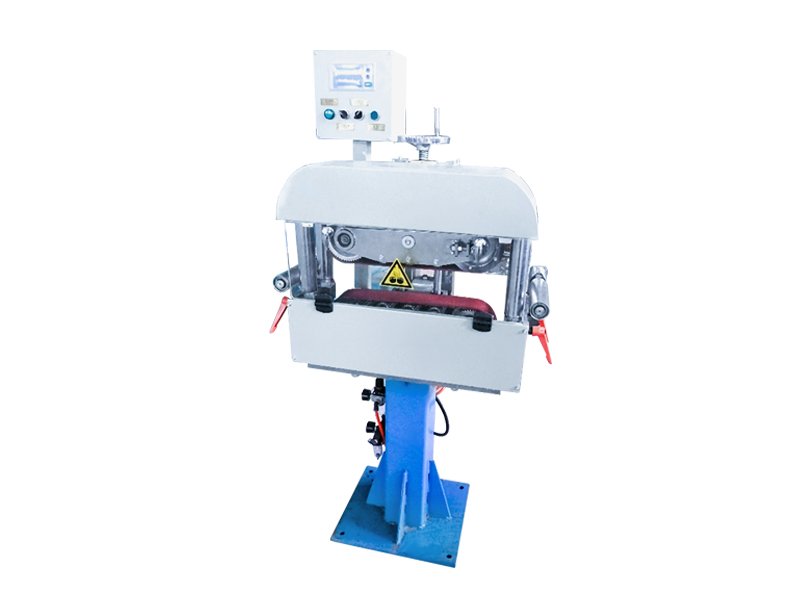

Meter counter is used to measure the length of the cable and other media equipment. Track meter is dragging along after measuring medium sandwiched by two upper and lower tracks. Walking the length of the track is to be measured the length of the medium. Crawler shoe length is the length of the rotation off the pitch line, that is, the number of teeth and pitch wheel shoe product. To measure the number of turns through the rotation shoe mounted on the shaft encoder active shoe, after conversion can be drawn through the length of the media, and recorded, An upper track by hand wheel and screw up and down to the lower track to move up and down through the cylinder. Lift distance to the outer diameter of the medium being measured is determined.


Model PBMC-50 JLDA-120 JLDA-160
Max. cable meter [mm] Φ50mm Φ120mm Φ160mm
Meter accuracy ≤0.2% ≤0.2% ≤0.2%
Center height [mm] 1000 1000 1000
Cable clamping manner Cable clamping manner
Meters control and display mode Arc tooth synchronous track pressing + Encoder + PLC + text display
Factory setting wheel diameter coefficient (precisely trim) 142.6 142.6 142.6
Track specifications 840-8M-40 960-8M-70 1056-8M-85
Dimensions(L*W*H) [mm] 552*293*1305 644*395*1428 740*425*1468
