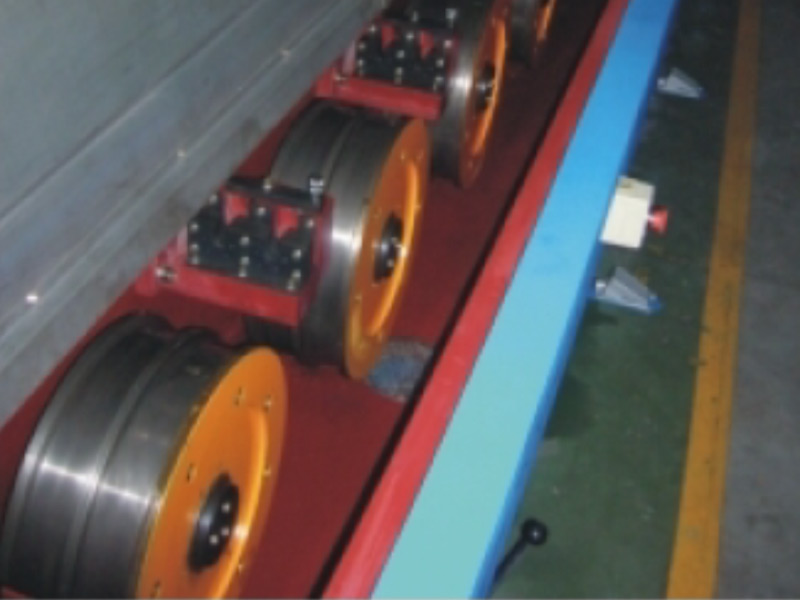

Specification of Double Wire Rod Breakdown Drawing Machine
| Description | Specification | ||
| DL450-2/13 | DL450-2/11 | DL450-2/9 | |
| Max. inlet diameter [mm] | 2×Φ8.00 1×Φ10.00 | ||
| Outlet diameter range [mm] | 2×(Φ1.20-3.50) 1×Φ4.50 | 2×(Φ1.60-3.50) 1×Φ4.50 | 2×(Φ2.00-3.50) 1×Φ4.50 |
| Max.mechanical speed [m/min] | 1500 | 1500 | 1200 |
| Max.number of die | 13 | 11 | 9 |
| Oval diameter of die [mm] | 50 | 50 | 50 |
| Mechanical elongation | 46%-8% | 46%-8% | 46%-8% |
| Drawing cone diameter [mm] | Φ450 | Φ450 | Φ450 |
| Capstan diameter [mm] | Φ450 | Φ450 | Φ450 |
| Main motor power [kw] | DC510 | DC510 | DC400 |
| Capstan motor power [kw] | DC90 | DC90 | DC90 |
Specification of Double Wire Annealer
| Description | Specification |
| Saturation wire diameter [mm] | 2×(Φ1.20-3.50) 1×Φ4.50 |
| Max mechnical speed [m/min] | 1500 |
| Max annealing current [A] | Max.8000(AC) |
| Max annealing volt [V] | Max.53(AC) |
| Annealing capacity [Kva] | 568 |
