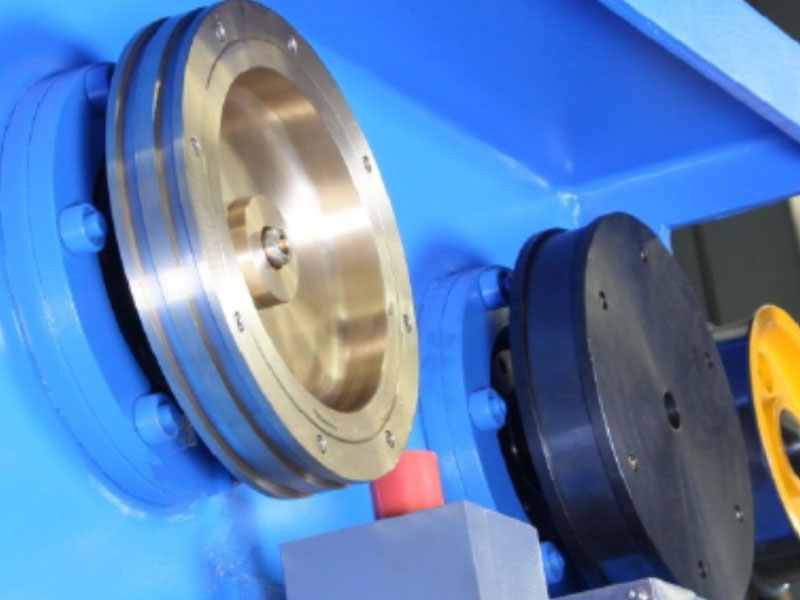

  • Double wire Continuous Annealer
  • 54
  • Dual Wire Fine wire Drawing machine
  • Double wire Continuous Annealer

Double-wire Intermediate Wire Drawing Machine With Continuous Annealer

Parameters

Production Speed

Wire size [mm] Wire Speed Elongation
Soft wire [m/min]
2*0.8 1200 25-33%
2*1.0 1000 25-33%
2*1.2 700 25-33%
2*1.6 700 25-33%



Technical Specification

Description Specification
Model ZL280B-13/2/TH3000-2
Inlet diameter [mm] Single wire: Max.3.50   Dual wire: Max.2.60
Outlet diameter [mm] Single wire: 0.8-2.76  Dual wire: 0.8-1.2
Mechanical speed [m/min] Max.1500
Cone diameter [mm] Max.280
Capstan diameter [mm] 280
No.of die Max.13
Mechanical elongation Last die 13.38%; Others 18.18%
Main motor power [kw] AC75(frequency conversion)
Machine dimensions [mm] 2450*1300*1400
Net weight [kg] About 3500
Annealed wire diameter [mm] Single wire: 1.0-2.76; Dual wire: 0.8-1.2
DC current for annealing [A] 3000
DC volt for annealing [A] Max.50
Annealing capacaity [kva] 195
Steam generator power [kw] 9
Steam quantity [mm] 12
Machine dimensions [mm] 1700*1500*2700
Net weight [kg] about 4000

Note:
1. The machine can be working together with WS series single spooler& double spooler and WF series coiler.
2. Compressed air supply: shall be clean and no grease, working pressure 0.6-0.7Mpa, inflation value ±0.02Mpa, dew point-25℃, flow value 50L/min.
