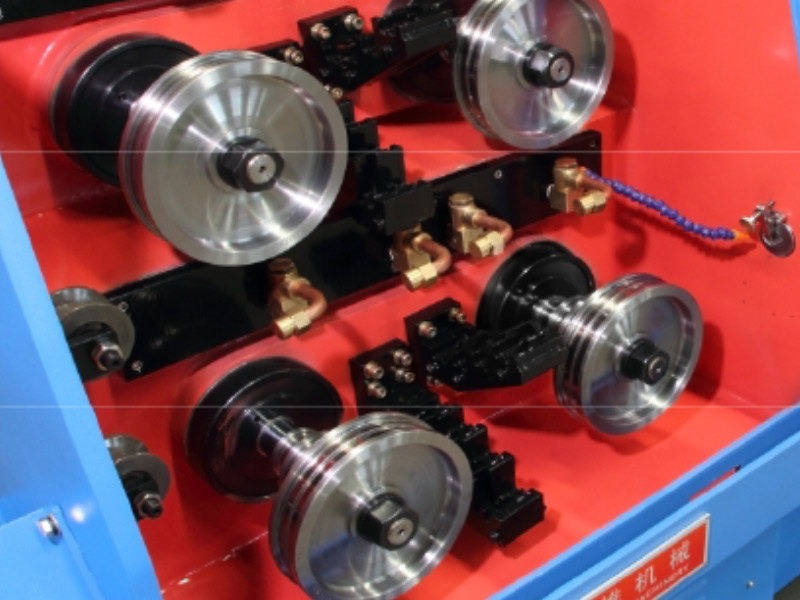

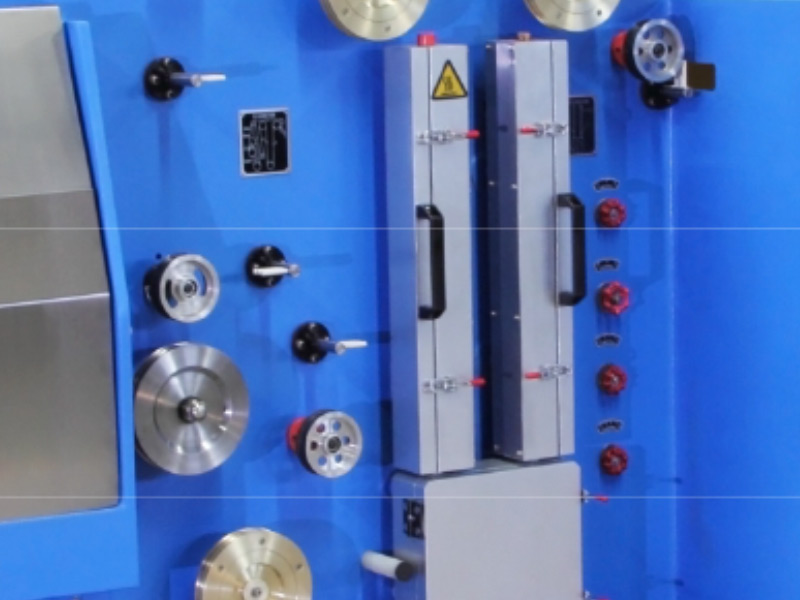

Double-wire Drawing Machine With Continuous Annealer

Parameters

Production Speed

Wire size Wire speed Elongation
Hard wire Soft wire
2*0.15 1500 1200 15-20%
2*0.20 1800 1500 20-25%
2*0.35 1800 1500 25-30%
2*0.50 800 800 25-30%
1*0.60 1000 800 25-30%






Technical Specification

Description Specification
DBT17-2/DTH500-2/2*DWS400
Inlet diameter [mm] Single wire:Max2.05(TR) Max1.83(TY) Dual wire:Max1.6(TR)
Outlet diameter [mm] Single wire:0.15-0.60 Dual wire:0.15-0.50
Mechanical speed [m/min] Max.1800
Cone diameter [mm] Max.200
Capstan diameter [mm] 200
Number. of dies Max.17
Mechanical elongation Last die:18.6%; Others:25%
Drawing motor power [kw] 18.5
Winding motor power [kw] 3*2
Steam generator power [kw] 6
DC current for annealing [A] 0-500
DC volt for annealing [V] 0-50
Installed power [kva] 66
Standard spool [mm] PND400*2
Spool capacity [kg] Max.100*2
Power supply [V] -3*380(+5%)
Frequency [Hz] 50(+2%)
Machine dimensions [mm] 3750*1450*1850
Net weight [kg] About 4750
Traverse method Screw shaft reversal device
Cooling method Spray
Brake method Pneumatic

Note:
1.The spooler can be designed according to the dimensioin of spool provided by customer.
2.When use pneumatic brake,compressed air shall be clean and no grease, working pressure 0.6-0.7Mpa,inflation value ±0.02Mpa,dew point- 25°C,flow value 50L/min.
