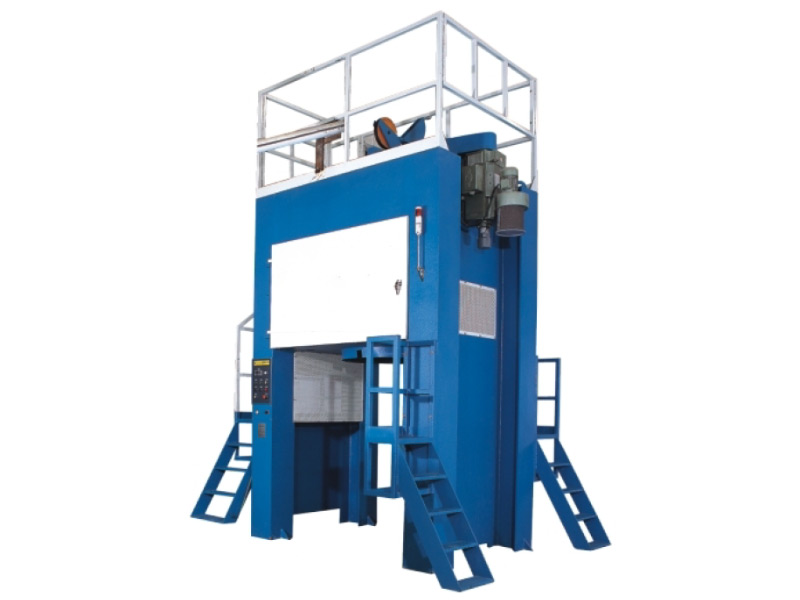

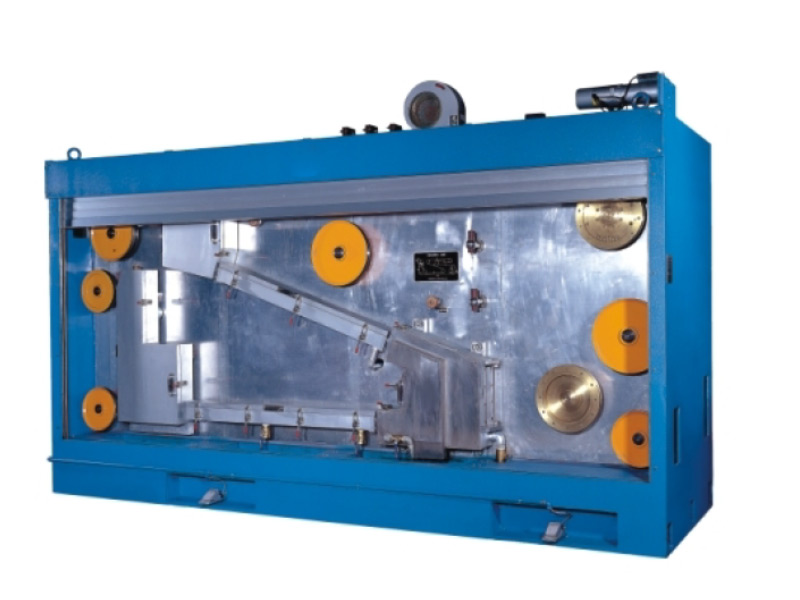

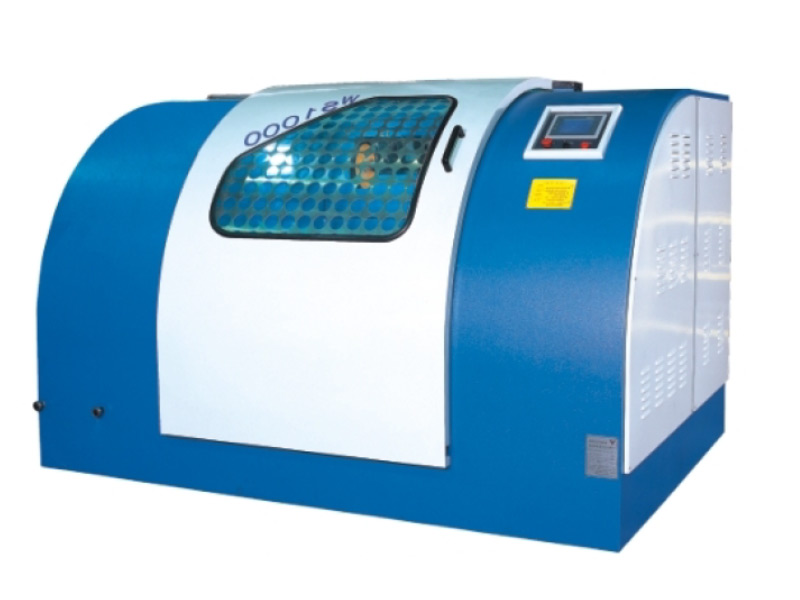

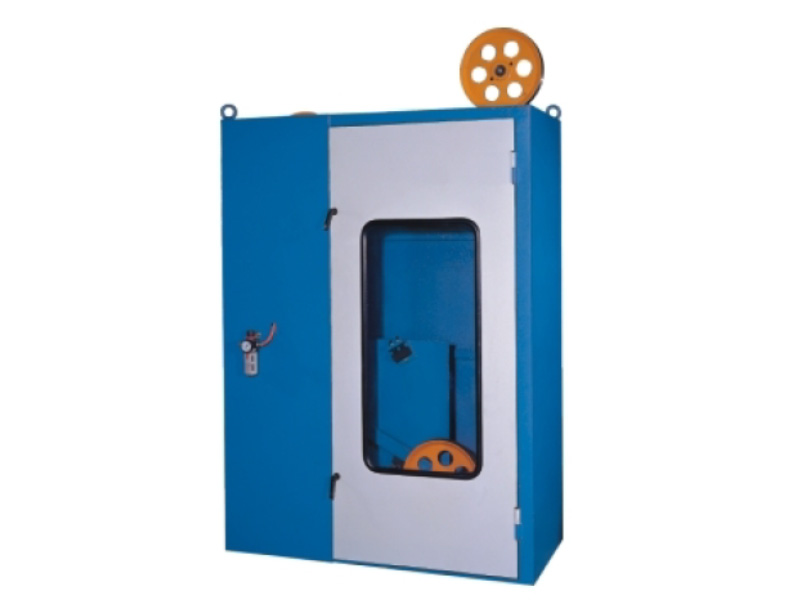

The machine is used for drawing Φ8 copper rod, complete with continuous annealer, dual spooler or coiler.
Referenced Production Speed
| Wire diameter | Hard wire [m/min] | Soft wire [m/min] |
| 1.20mm | 1200 | 1200 |
| 2.00mm | 1200 | 1000 |
| 2.60mm | 850/1200 | 850 |
| 3.00mm | 700/900 | 700 |
Technical Specification
| Specification | Model | ||
| DL400-9 | DL400-11 | DL400-13 | |
| Inlet diameter [mm] | Φ8 | Φ8 | Φ8 |
| Outlet diameter range [mm] | Φ2.0-Φ3.5 | Φ1.6-Φ3.5 | Φ1.2-Φ3.5 |
| Max.number of die | 9 | 11 | 13 |
| Max.mechanical speed [m/min] | 1500 | 1500 | 1500 |
| Elongation rate | 46%-8% | 46%-8% | 46%-8% |
| Drawing wheel diameter [mm] | first5 Φ500 others Φ400 | ||
| Capstan wheel diameter [mm] | Φ400 | Φ400 | Φ400 |
| Main motor power [kw] | AC200 | AC200 | AC200 |
| Capstan motor power [kw] | AC37 | AC37 | AC37 |
| Machine dimension(L*W*H)[m] | 6.8*1.8*1.2 | 8.1*1.8*1.2 | 9*1.8*1.2 |
| Net weight [kg] | 18000 | 20000 | 22000 |
