Fully submersible drawing lubricant, Capstan spray cooling method, Tungsten carbibe drawing cone,Capstan high accuracy helical gear driven, Oil shortage protection, Option for operation direction, Left or right
Production Speed
| Wire diameter [mm] | ZLH280-13 | ZLH250-17 | Elongation |
| Soft wire [m/min] | Soft wire [m/min] | ||
| 1.0 | 800 | 800 | 25-31% |
| 1.2 | 750 | 650 | 25-31% |
| 1.8 | 350 | 300 | 25-31% |

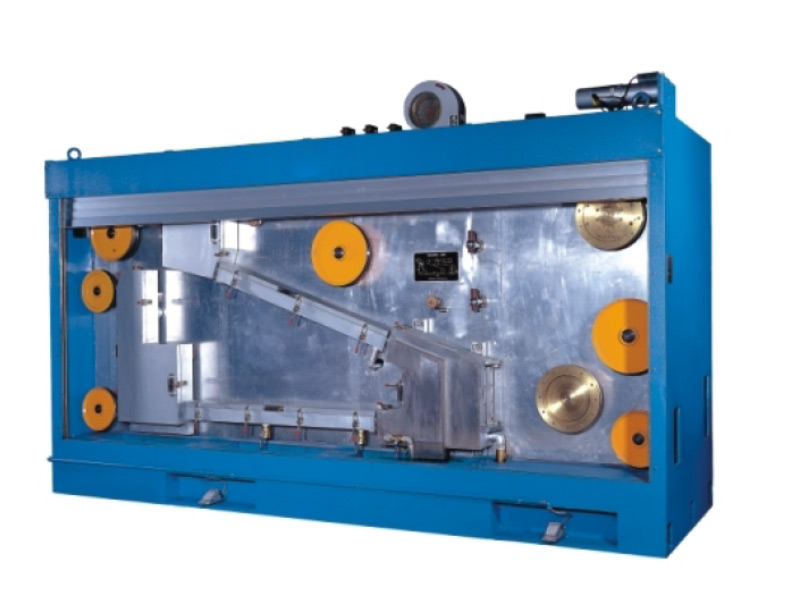

Intermediate Drawing Machine Specification
| Description | Specification | |
| ZLH280-13 | ZLH250-17 | |
| Max. inlet diameter [mm] | Φ3.60 | Φ3.60 |
| Outlet diameter range [mm] | Φ0.8-2.0 | Φ0.8-1.6 |
| Max.mechanical speed [m/min] | 1200 | 1200 |
| Max.number of dies | 13 | 17 |
| Oval diameter of die [mm] | 25 | 25 |
| Mechanical elongation | sizing dies13.38%，others18.18% | |
| Max. drawing cone diameter [mm] | Φ280 | Φ250 |
| Capstan diameter [mm] | Φ280 | Φ250 |
| Cone layers number[kw] | 3 | 4 |
| Main motor power [kw] | DC75 or AC55(driven by inverter) | |
| Machine dimensions [mm] | 2400*1250*1400 | |
| Machine weight [kg] | 3260 | |
