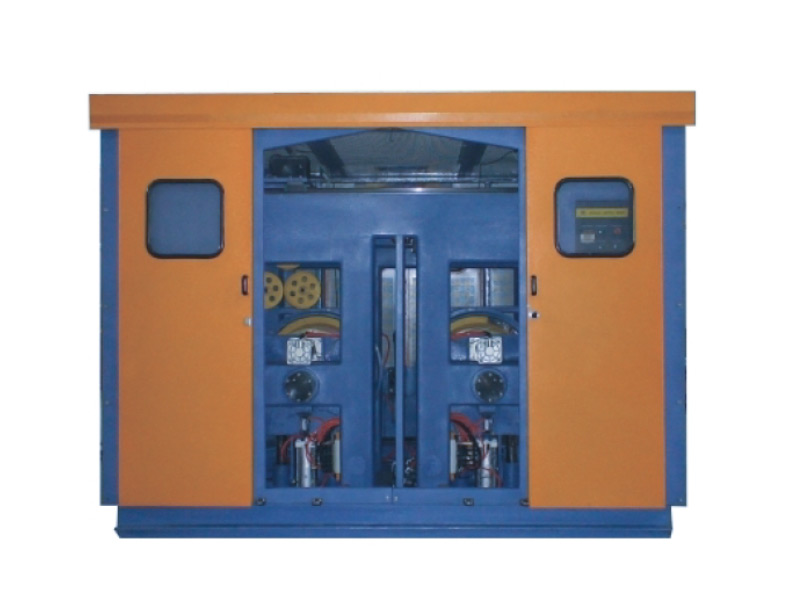

Al Rod Breakdown Drawing Machine

The machine is used for drawing Φ9.5 aluminum or al-alloy rod and Φ12 aluminum rod, complete with continuous annealing, coiled by dual spooler or single spooler.


Description Specification
DLV400-15 DLV400-13 DLV400-11 DLV400-9 DLV400-2/13
Max. inlet diameter [mm] Φ9.5(Al) 2*Φ9.5(Al)
Outlet diameter range [mm] Φ1.2-4.5 Φ1.5-4.5 Φ1.8-4.5 Φ2.3-4.5 Φ2*1.5-4.5
Max.mechanical speed [m/min] 1500 1500 1500 1500 1500
Max.number of dies 15 13 11 9 13
Mechanical elongation [mm] 46%-8% 46%-8% 46%-8% 46%-8% 46%-8%
Drawing cone diameter [mm] first5 Φ450
other9 Φ450
first5 Φ500
other7 Φ400
first5 Φ500
other5 Φ400
first5 Φ500
other3 Φ400
first5 Φ500
other7 Φ400
Capstan diameter [mm] Φ400 Φ400 Φ400 Φ400 Φ400
Main motor power [kw] AC132 AC132 AC132 AC132 AC200
Capstan motor power [kw] AC37 AC37 AC37 AC37 AC55
Machine dimensions  [mm] 10*1.8*1.2 9*1.8*1.2 8*1.8*1.2 6.8*1.8*1.2 9*1.8*1.2
Machine weight  [kg] 24000 22000 20000 18000 24000
