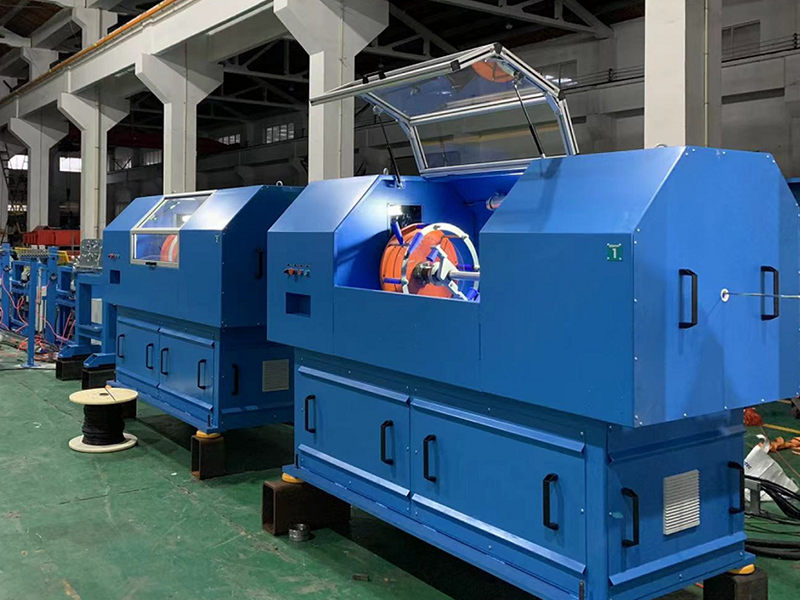

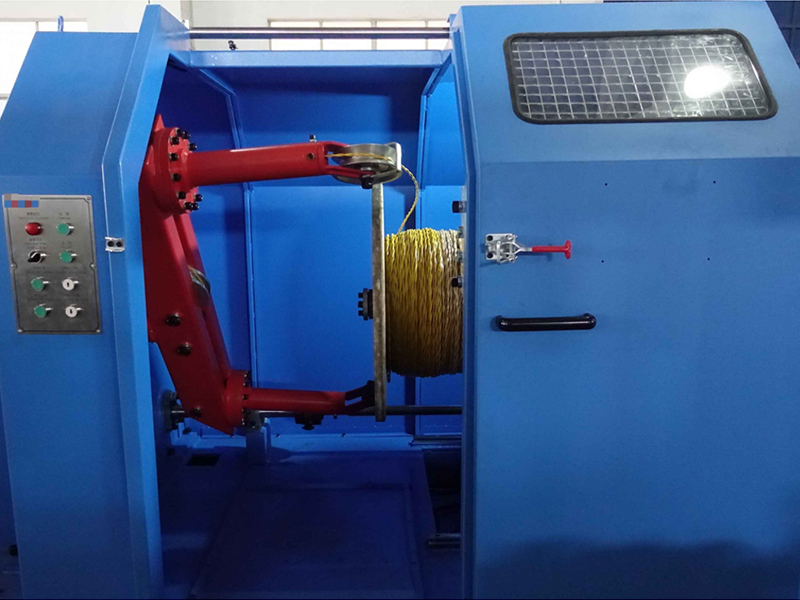

SW-630 PLC Cantilever Type Single Twist Cabling Line

  • PLC signal transmission

  • The space is very small

  • Ultra short cable channel

  • Automatic refueling lubrication system

  • Automatic bearing temperature sensing system

  • Energy saving of variable frequency motor 20%

  • The whole machine adopts individual motor control

  • Advanced aerodynamic design

  • Variable frequency motor and control system

  • NSK bearing, high tensile strength

  • Excavation free foundation and convenient installation

  • The smart meter is installed in the control cabinet

Parameters

Application
This machine set is applicable to the high-speed cable forming and twisting of all kinds of power cords, PVC and PE cables, Category 5, 6, and 7 data cables, telecommunication cables, and other special-purpose wires and cables. It can also be used for central taping and side taping.

Main parameters

Applicable core wire  Ø0.6-Ø4.0mm
(flexible insulation wire: 0.50mm²-4.0mm²)
(stranded wire: Max. 2.5mm²)
Twisting output diameter  MAX. Ø15.0mm
Range of cable lay 20mm-120mm stepless regulation

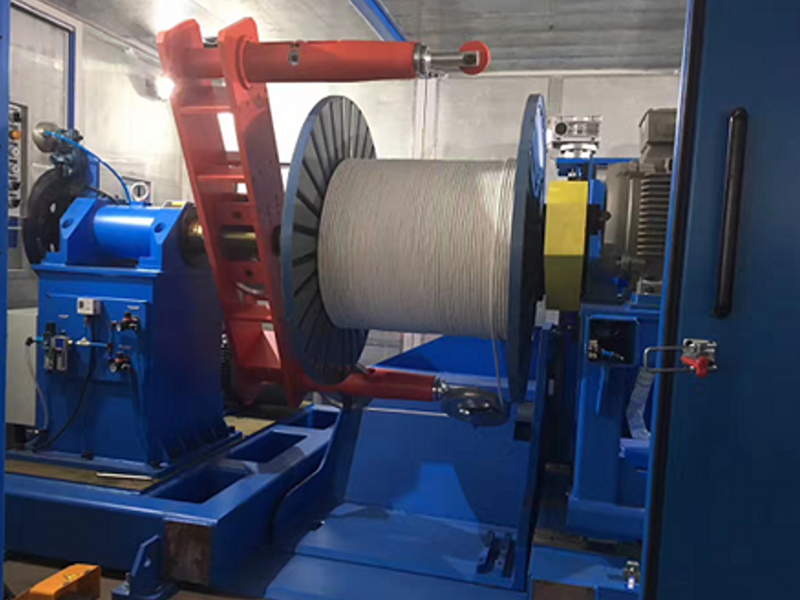

Take-up bobbin diameter
BOBIN 630
FLANGE SIZE 630
BARREL SIZE 315
OVERALL WIDTH 475mm
TRAVERSE RANGE 415mm
BORE SIZE 127mm
LOADING WEIGHT 500KGS

Tape specification
Pore diameter Ø76mm
Tape diameter Ø400mm
Width range 10mm-30mm
Applicable materials Cotton paper, Nylar tape, Aluminum foil tape, Polyester tape
Rotation speed of taping machine Max. 2500 rpm
2000rpm when production
Rotation speed of single-twisting machine Max. 900rpm ( dynamic balance)
650rpm when production
Direction left, right (“S”, “Z”); can be reversed
