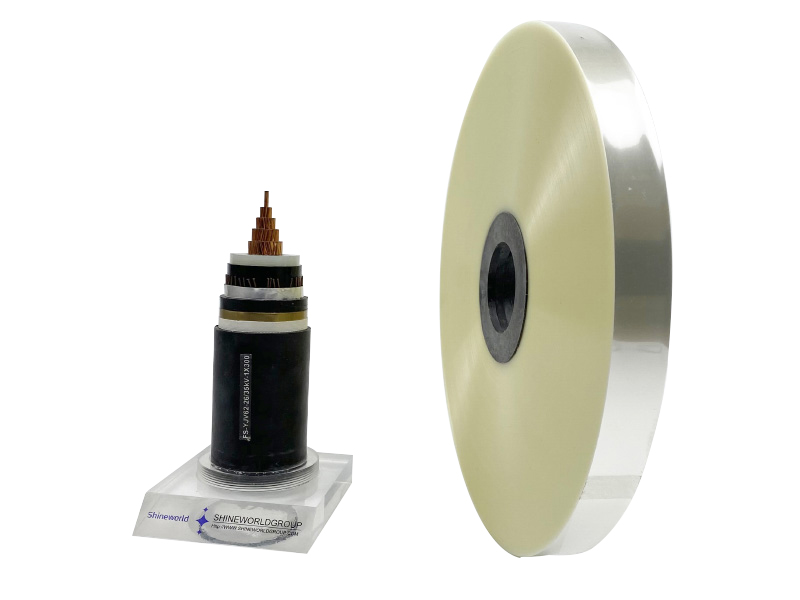

Polyester tape in this standard is mainly used in the wrapping of the assembled insulated cable cores and taping the rotor of motor. Polyester tape has good properties of tensile strength, elongation at break and peeling strength. It also has a good thermal shrinkage at high temperature and stays soft at low temperature.
High Tensile Strength;
Excellent Insulation Shielding Properties;
Color Customized;
Good Heat Resistance Around 255℃.
| Item | Unit | Specification |
| Thickness | mm | 0.02~0.06±0.005 |
| Color | / | Transparent, Yellow, Red, Blue, Green, Black, etc. |
| Unit Weight | g/m² | 70±10 |
| Width | mm | ≥5 |
| Tensile strength | Mpa | ≥150 |
| Elongation | % | ≥80 |
| Heat shrinkage(150℃,30Min) | % | ≤3.5 |
