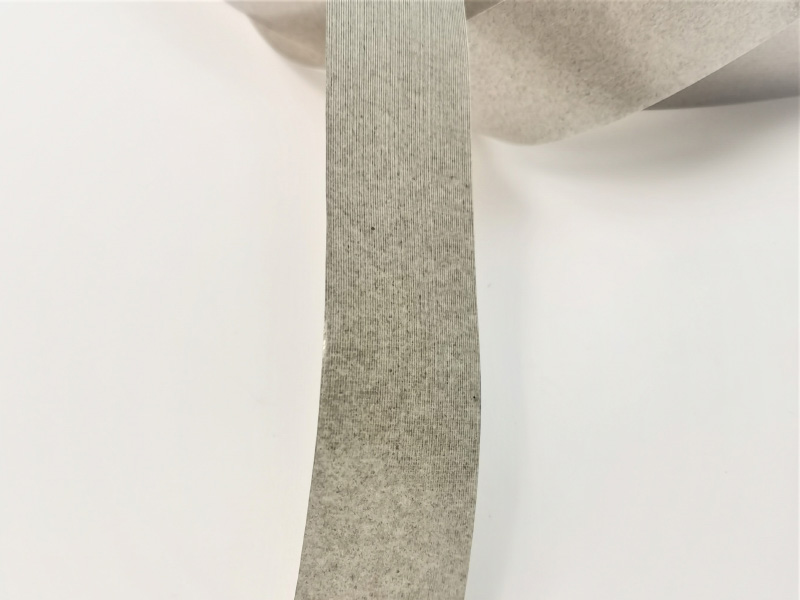

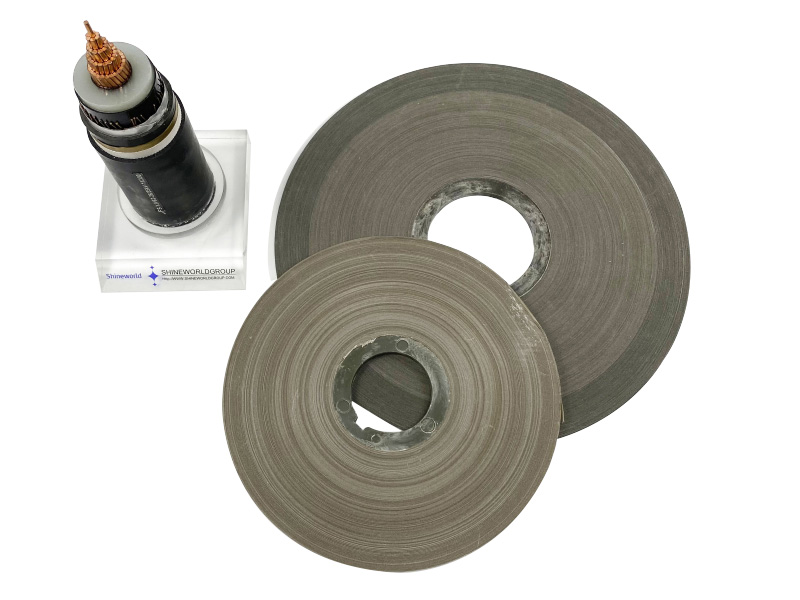

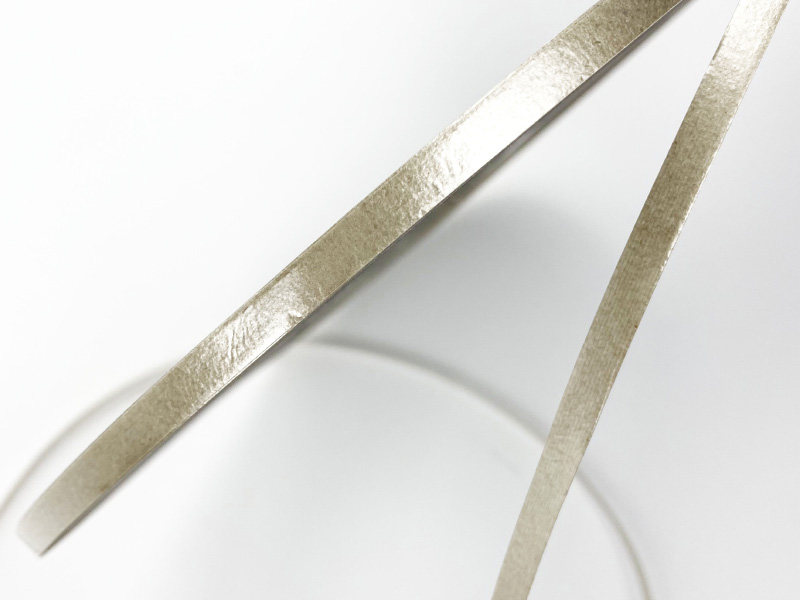

Base on the standard IEC 60331 and BS 6387-2013 is mainly used in the wrapping of the conductor or assembled insulated cable cores. It has good properties of tensile strength, elongation at break and peeling strength.
High Temperature Resistance Up To 950℃;
Great Flexibility;
High Tensile Strength;
Excellent Flatness And Resistance To Friction.
Standards Reference
| Test Standards | Duration of test(mins) | Voltage | Temp. | Test condition | Type of Mice Tape to be advised to pass each test standard | Min no. Of Layers | Min. overlapping |
| IEC 60331 | 90 | 600/1000V | 750℃ | Exposed to flame | Phlogopite mica tape | 1 | 35% |
| BS 6387 cat. C | 180 | 600/1000V | 950℃ | Exposed to flame | High quality phlogopite
Calcined muscovite mica tape |
2 | 50% |
| BS 6387 cat. W | 30 | 600/1000V | 650℃ | Exposed to flame with Water Spray | High quality phlogopite
Calcined muscovite mica tape |
2 | 50% |
| BS 6387 cat. Z | 15 | 600/1000V | 950℃ | Exposed to flame with mechanical shock | High quality phlogopite
Calcined muscovite mica tape |
2 | 35% |
Specification
| Thickness
[mm] |
Tolerance
[mm] |
Mica Content
[g/m²] |
Tensile Strength [N/10mm] | Electrical breakdown strength 50HZ MV/m | volume resistivity 20℃ Ω·m | Width
[mm] |
|
| GM，GP，GS，FMG，FPG，FSG： | GMG，GPG，GSG | ||||||
| 0.10 | ±0.015 | 100 | ≥60 | ≥100 | ≥10 | ≥1×1010 | 20～65 |
| 0.13 | ±0.015 | 120 | |||||
| 0.16 | ±0.02 | 140 | |||||
