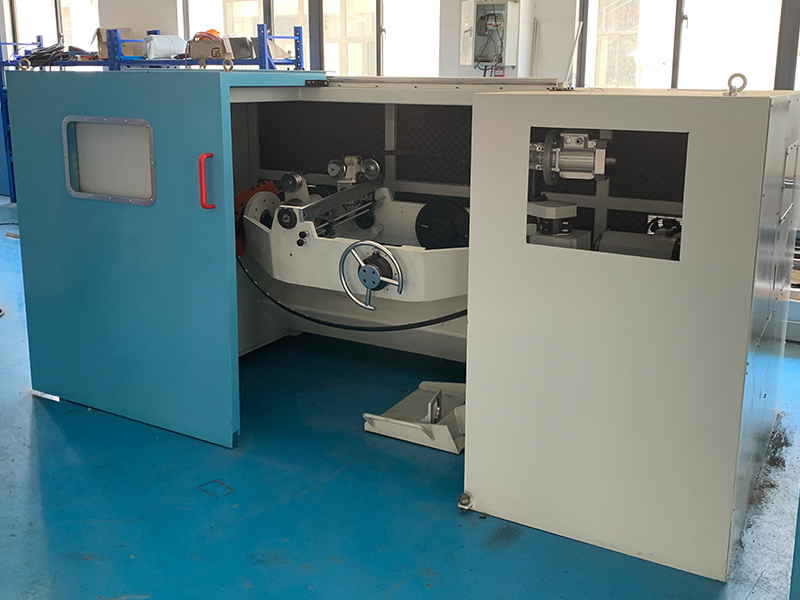

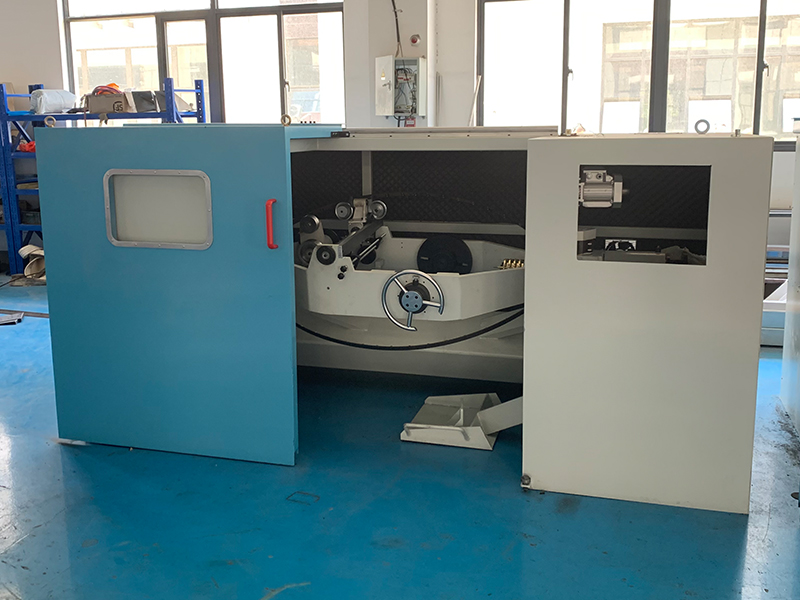

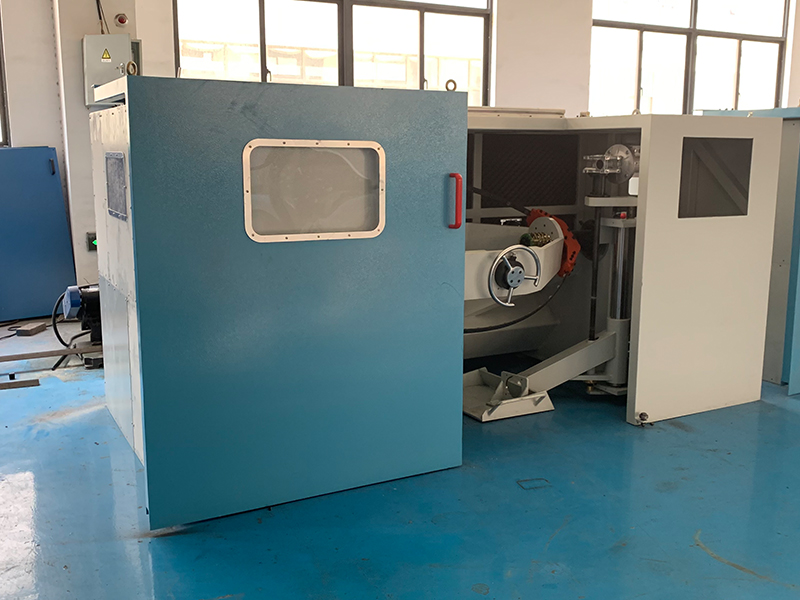

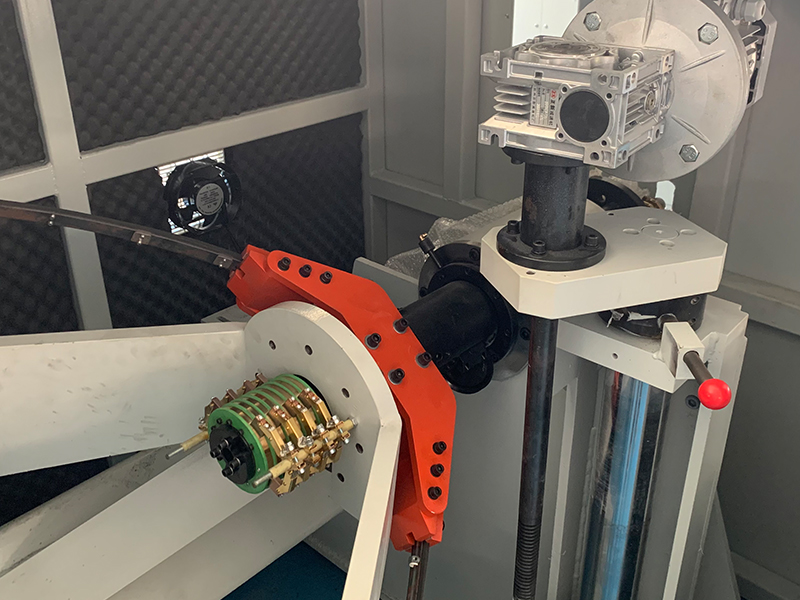

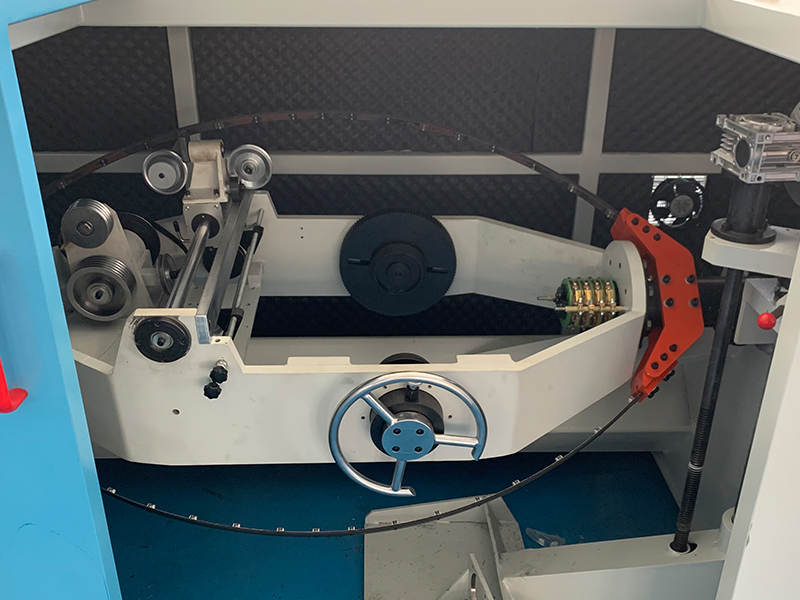

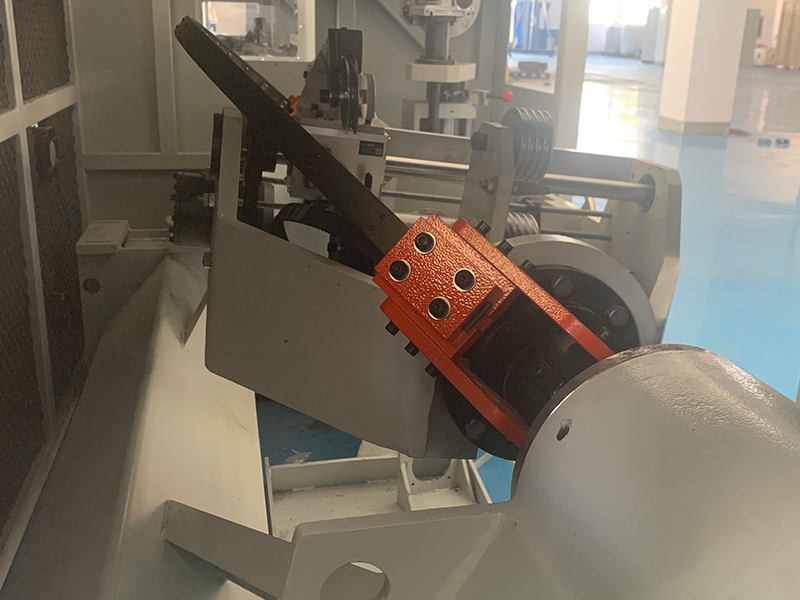

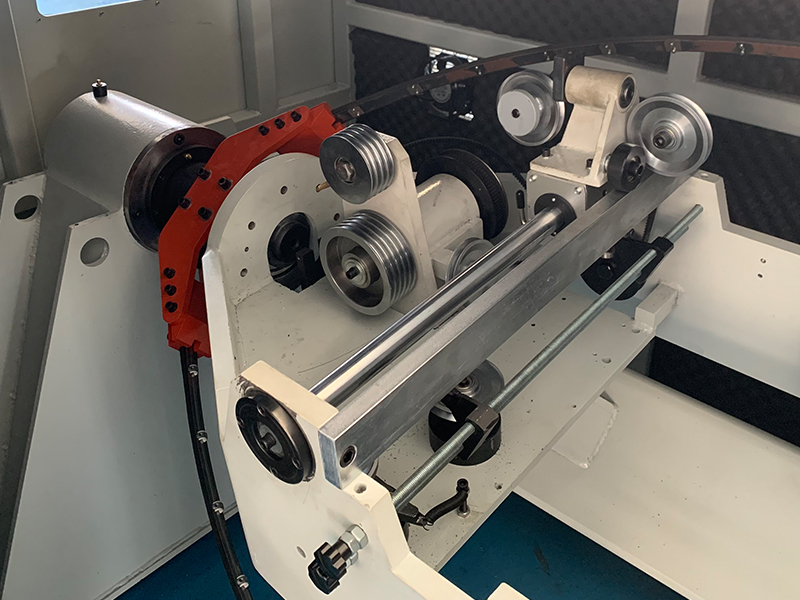

HH630/800 High Speed Double Twister Bunching Machine

  • Machine body structure: material of Q235; Enclosure made by iron plate welded surface forming, after annealing treatment, eliminate the internal stress and precision by boring machine.

  • Spindle: 40 cr; Axis of the conditioning HB250, ensure to eliminate internal stress,increase the intensity of main spindle, bearing installation after a high frequency surface processing, improve the Resistance to wear.

  • Bow material:spring steel belt.

  • Wire holder on twisting bow : Ceramic eye+ guide wheel.

  • Bearing: mainly adopts Japan NSK.

  • Safety: the door controlled by magnetic lock, only can be open after totally stop. The lifting system can't be up and down when machine working. Only can open the machine when door closed and lifting system down in place.

Parameters

Main Specification

Type HH630 HH800
The max bobbin size(mm) φ630×360  φ800×600
Copper wire section area(mm²) 1.5-6mm2  2.5-16mm2
Copper wire size(mm) 0.23-0.64mm 0.41-1.05mm
Lay pitch(mm) 26.0 ~ 75.0mm 27.4 ~ 144.11mm
Twisting direction “S” or “Z” “S” or “Z”
Twisting speed(r/min) 0 ~ 1500  0 ~ 1200
The height of spindle from ground(mm) 860mm 887mm
Machine size(mm) 2850*1500*1660mm 3630*1600*1750mm
Weight(kg) 2920kg 5800kg
Power supply 380V、50Hz
Installation height ≤1000m
Installation tem ≤40℃
Wire inlet direction from right to left or from left to right
Noise ≤85db
Pay off 196 heads; bobbin size: 200mm
Take up  630mm  800mm

Operate System And Electric

Type HH630 HH800
Motor 7.5KW(Siemens), inovance inverter 15KW(Siemens), inovance inverter
Take up tension by manual controlled by magnetic powder clutch (Taiwan brands), which can
adjust the tension automatically
Bobbin up and down manual-hydraulic Electrical-hydraulic
Electrical control PLC(Mitstubishi) PLC(Omron)
Travers polish rod, distance can adjustable polish rod, distance can adjustable
Brake Electromagnetic brake (include internal and external) Electromagnetic brake (include internal and external)
