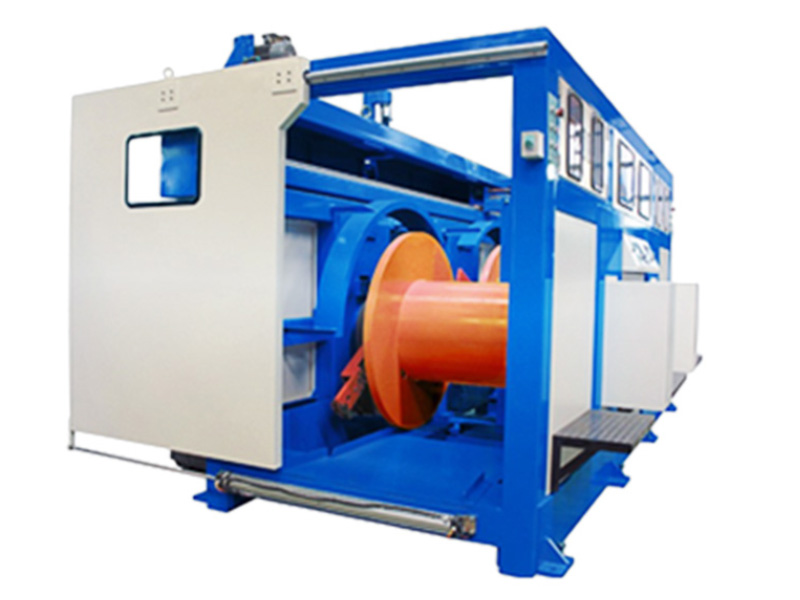

Dual Spooler with Bobbins Auto-change

Mainly used for the extrusion of various wires and cables, as well as the high-speed paying-off and taking-up during the rewinding production.

  • 11kw motor frequency conversion speed regulation control, used in conjunction with the wire accumulator, and automatically track the speed of the production line;

  • Pneumatic control is adopted for coil loading, unloading, lifting and braking, independent pressure regulation, safe and fast;

  • Non stop production since the change-over is done without stopping the line. The pay off speed can reach up to 600m / min; Fully control operation by the PLC according to the information received from the meter counter;

Parameters

Model CATU-500 CATU-560 CATU-630 CATU-800 CATU-1000 CATU-1250 CATU-1600
Bobbin Ø [mm] 500 560 630 800 1000 1250 1600
Bobbin width range [mm] 300-375 350-425 400-475 500-600 500-750 700-950 1000-1200
Bobbin load [kg] 200 250 350 600 1500 2000 3000
Max.Overall Ø [mm] 5 6 8 9 9 10 10
Max. Cross Section  [mm2] 4 4 6 6 10 16 16
Max. Speed  [m/min] 2000 1800 1200 1000 1000 800 600
Motor power  (AC servo) [kw] 11*2 15*2 15*2 18.5*2 18.5*2 22*2 30*2
